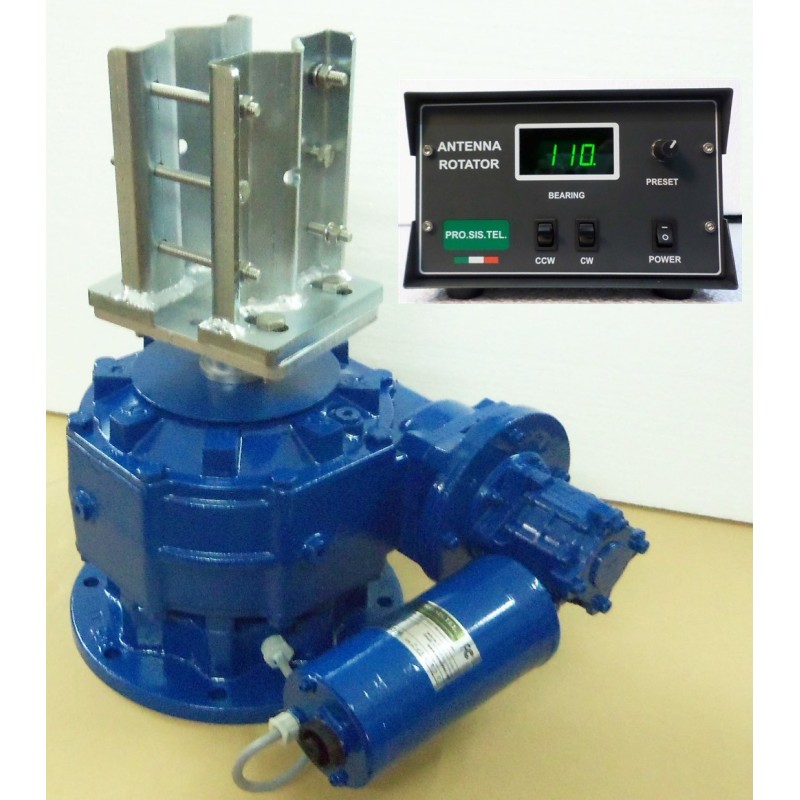

PST110D-PRO-HP
€3,707.58
Tax included
Super Heavy Duty antenna Rotator, handle up 10m2 (80sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque, no sweep no backslash.
Far away from the nearest competitors.
Soft start e soft stop with programmable ramp speed.
A Controller fully controllable via USB Com port
Two years warranty
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Rotator specifications:
- Max wind load area 10 m²
- Braking torque 16.500Kgcm = 1.617Nm
- Rotating torque 7.959Kgcm = 780Nm
- Max vertical load 1.200Kg
- Motor voltage 42 VDC
- Rotating range 360°
- Rotation speed ~120 seconds for 360°
- Reading accuracy 1° no backlash
- Antenna mast OD 40-80mm (special version on request)
- Operational temperature range (°C): rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C): rotor unit -40° ÷ +70°
control box -25° ÷ +60°
- Weight (rotator only) ~ 40kg
Controller specifications:
- USB Com port for PC
- Soft start - soft stop with programmable ramp
- Programmable speed + Preset
- Max rotation range 360°
- Programmable end rotation limits
- Selectable south stop or north stop
- All settings are programmable by PC
- Control box power input 230VAC (115VAC) , 50-60Hz, 100VA
- Direction reading Digital Hall Encoders
- Limits Electronic, adjustable by software
- Rotator cable 7 wires (2 x 1mm² + 5 x 0,5mm²) double shield cable
- Weight (controller only) ~ 5 kg
