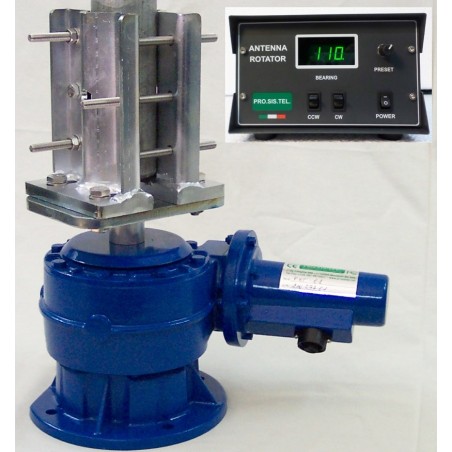

Specifications:
- Max wind load area 3.9 m²
- Braking torque 5.755Kgcm = 564Nm
- Rotating torque 3500Kgcm = 343Nm
- Max vertical load 850Kg
- Motor voltage 12 VDC
- Rotating range 500° (70+360+70)
- Rotation speed ~100 seconds for 360°
- Reading accuracy ~1% no backlash
- Antenna mast OD 40-80mm
- Operational temperature range (°C): rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C): rotor unit -40° ÷ +70°
control box -25° ÷ +60°
- Weight (rotator only) ~ 20 kg
Controller specifications:
- USB Com port for PC
- Soft start - soft stop with programmable ramp
- Programmable speed + Preset
- Max rotation range 500° (70+360+70)
- Programmable end rotation limits
- Selectable south stop or north stop
- All settings are programmable by PC
- Control box power input 230VAC (115VAC) , 50-60Hz, 100VA
- Direction reading Digital (potentiometer)
- Limits Electronic, adjustable by software
- Rotator cable 5 wires (2 x 1mm² + 3 x 0,5mm²)
- Weight (controller only) ~ 5 kg
