PST2051D
search
  • PST2051D

PST2051D

975,63 €
Tax included

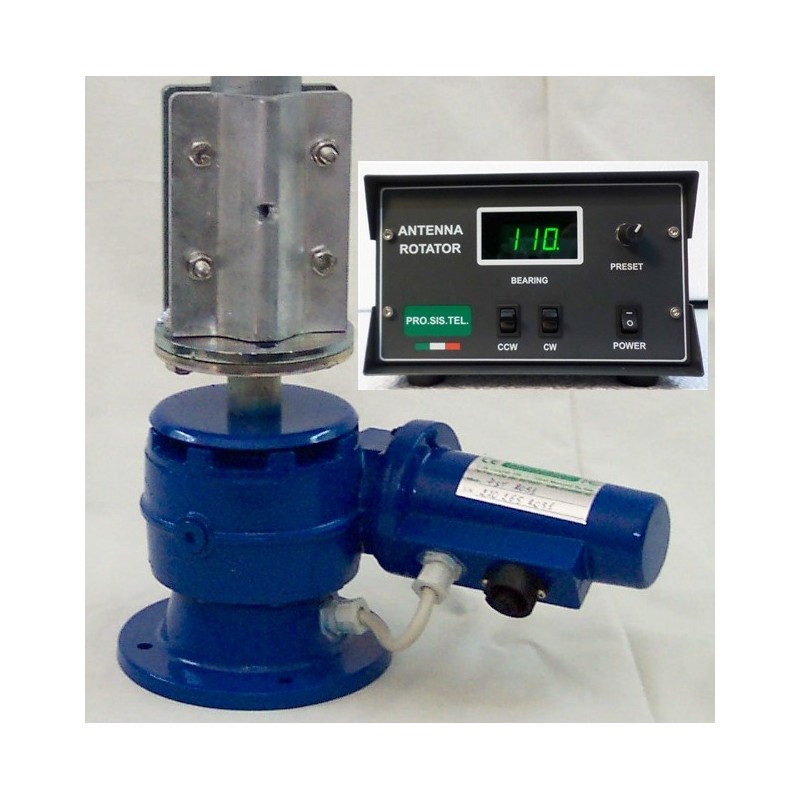

Rotor de antena adecuada para antenas de  medio y grandes tamagno

Tecnología de tornillo sin fin irreversible de torcer el mástil

Resistencia de frenado grande

Excelente  la potencia del motor en corriente continua

El mando es totalmente configurable y controlable por ordenador a través de USB.

Quantity

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Rotator specifications:
-    Max wind load area          2.5 m²
-    Braking torque                 3.000Kgcm = 294Nm
-    Rotating torque                2000Kgcm = 196Nm
-    Max vertical load              650Kg
-    Motor voltage                   12 VDC
-    Rotating range                  500° (70+360+70)
-    Rotation speed                ~90 secondi per 360°
-    Reading accuracy            ~1%  no backlash
-    Diametro mast                  48-50mm
-    Operational temperature range (°C): rotor unit          -40° ÷ +60°
                                                                  control box      -20° ÷ +60°
-    Storage temperature (°C):                  rotor unit          -40° ÷ +70°
                                                                  control box      -25° ÷ +60°
Controller specifications:
-    USB Com port for PC
-    Soft start - soft stop with programmable ramp
-    Programmable speed  + Preset
-    Max rotation range 500° (70+360+70)
-    Programmable end rotation limits
-    Selectable south stop or north stop
-    All settings are programmable by PC
-    Control box power input            230VAC (115VAC) , 50-60Hz, 50VA
-   Direction reading                       Digital (potentiometer)
-   Limits                                          Electronic, adjustable by software
-   Rotator cable                              5 wires (2 x 1mm² + 3 x 0,5mm²)
-   Weight                                        ~ 5 kg
